#include <StructureObject.h>

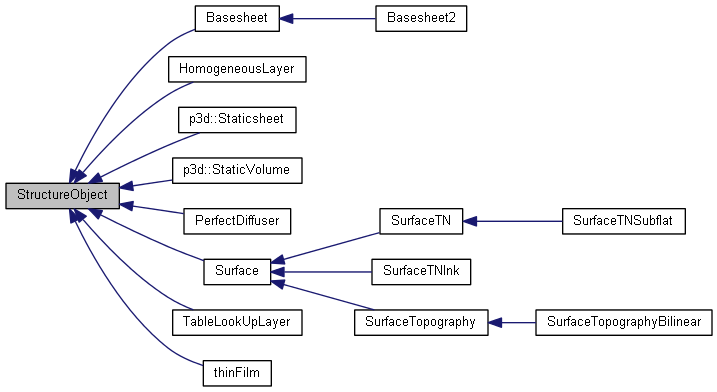

Inheritance diagram for StructureObject:

[legend]

Collaboration diagram for StructureObject:

Public Member Functions
	StructureObject ()
	StructureObject (StructureObject *)
virtual	~StructureObject ()
int	PropInLayer (WavePacket &wp, double &t_vector_init, bool &rBoundary)
virtual int	Process (WavePacket &wp, int up_down, int internal) const =0
void	mSetTypeObj (int typobj)
int	mGetType_obj () const
virtual complex_LC	mGetRefrIndex (int nbr) const
const StructureObject *	mGetPrevious () const
const StructureObject *	mGetNext () const
void	DeleteList (void)
Public Attributes
const StructureObject *	m_previous
const StructureObject *	m_next
Protected Attributes
vector< complex_LC >	mpRefrIndex
float	mXMin
float	mXMax
float	mYMin
float	mYMax
long	mIterationLimit
int	mTypeObj
Friends
class	Basesheet

Detailed Description

General class from which layers and surfaces are derived. The wave packet is passed from StructureObject (PO) to PO until it has left the last PO or has been absorbed. The class contains some general methods used by all child classes (e.g. PropInLayer (Periodic boundary conditions).

Constructor & Destructor Documentation

StructureObject::StructureObject ( )

StructureObject::StructureObject ( StructureObject * el )

TODO: DESCRICPTION HERE

Parameters:

StructureObject

StructureObject::~StructureObject ( ) [virtual]

Here is the call graph for this function:

Member Function Documentation

void StructureObject::DeleteList ( void )

Delete all the next StructureObject

Here is the caller graph for this function:

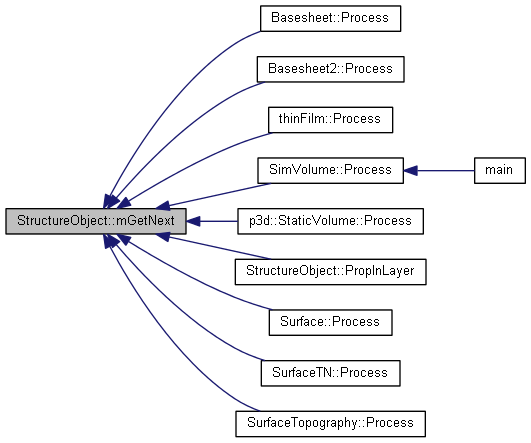

const StructureObject* StructureObject::mGetNext ( ) const [inline]

Here is the caller graph for this function:

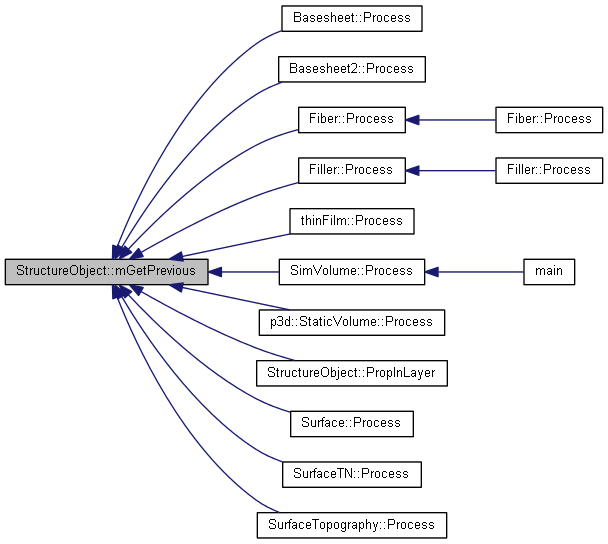

const StructureObject* StructureObject::mGetPrevious ( ) const [inline]

Fetch the previous (above) PaperOject in the simulated structure. Used to access parameters of the next layers (such as refractive index)

Here is the caller graph for this function:

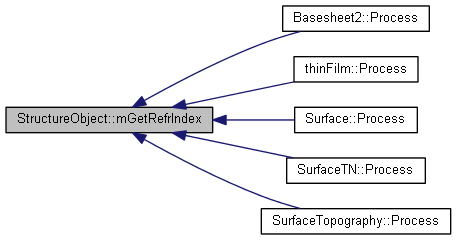

virtual complex_LC StructureObject::mGetRefrIndex ( int nbr ) const [inline, virtual]

Fetch the effective refractive index of a layer

Parameters:

nbr	wavelength # of the simulated wave packet

See also:: Basesheet2::mGetRefrIndex

Reimplemented in Basesheet2, Basesheet, and HomogeneousLayer.

Here is the caller graph for this function:

int StructureObject::mGetType_obj ( ) const [inline]

Return the type of StructureObject Used for differenting BASESHEET_S

See also:: SimVolume

Here is the caller graph for this function:

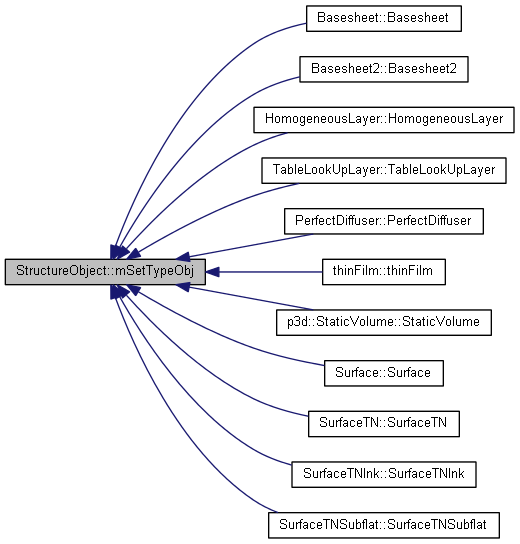

void StructureObject::mSetTypeObj ( int typobj ) [inline]

Set the type of StructureObject

Parameters:

typobj integer representing the type of StructureObject SURFACE=1, BASESHEET=2, BASESHEET_S =3, BASESHEETSTATIC=4

Here is the caller graph for this function:

virtual int StructureObject::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const `[pure virtual]`

Process the wp within the object overwritten by child objects

See also:: HomogeneousLayer::Process, Basesheet::Process

Implemented in thinFilm, TableLookUpLayer, Basesheet2, PerfectDiffuser, SurfaceTN, SurfaceTopography, Basesheet, Surface, HomogeneousLayer, SurfaceTNInk, p3d::Staticsheet, and p3d::StaticVolume.

Here is the caller graph for this function:

int StructureObject::PropInLayer	(	WavePacket &	wp,
		double &	t_vector_init,
		bool &	rBoundary
	)

Check for intercepts with the side boundaries of the layer and check whether wave packet is within lateral limits of homogenouse layer

Parameters:

wp	Wave Packet's object to calculate ditance of interception and call many fuctions of wave packet.
t_vector_init	Returns the travelled distance by wave packet
rBoundary	Reprsents the status of boundry whether hit or not

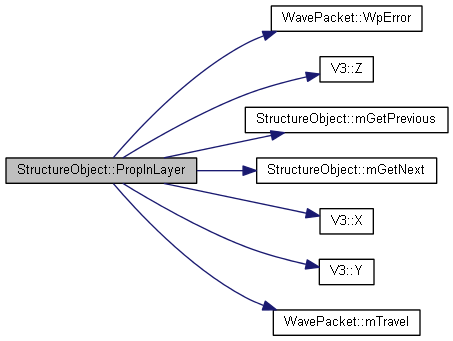

Here is the call graph for this function:

Friends And Related Function Documentation

friend class Basesheet [friend]

Member Data Documentation

const StructureObject* StructureObject::m_next

const StructureObject* StructureObject::m_previous

Pointer to the previous (above) or next (below) PaperOject in the simulated structure. Used to access parameters of the next layers (such as refractive index)

long StructureObject::mIterationLimit [protected]

Maximum scattering event within a StructureObject
