PerfectDiffuser Class Reference

#include <HomogeneousLayer.h>

Inheritance diagram for PerfectDiffuser:

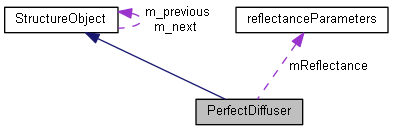

Collaboration diagram for PerfectDiffuser:

List of all members.

Public Member Functions
	PerfectDiffuser ()
	~PerfectDiffuser ()
	PerfectDiffuser (reflectanceParameters *rReflectance, StructureObject *prevStructureObject, std::vector< float > &rLambda)
virtual int	Process (WavePacket &wp, int up_down, int internal) const
Protected Attributes
reflectanceParameters *	mReflectance

---

Detailed Description

This class represents a perfect diffuser Wave packets are returned isotropically Reflectance control the probability for reflectance, other are absorbed

---

Constructor & Destructor Documentation

PerfectDiffuser::PerfectDiffuser

(

)

PerfectDiffuser::~PerfectDiffuser

(

)

PerfectDiffuser::PerfectDiffuser	(	reflectanceParameters *	rReflectance,
		StructureObject *	prevStructureObject,
		std::vector< float > &	rLambda
	)

Constructor

Parameters:

rReflectance	reflectance from the layer
prevStructureObject	pointer to the previous paper object.
rLambda	the simulated wavelengths.

Set object type so that no surface scattering at layer boundary is performed

Here is the call graph for this function:

---

Member Function Documentation

int PerfectDiffuser::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const [virtual]

Picks the wavelength of the wave packet and interpolate transmittance/reflectance for the incident angle onto the layer

Parameters:

wp	the wave packet
up_down	1 if wp going up, -1 if wp going down
internal	tells if the wave packet should start within layer or if layer boundary should be applied first. Always 1 for this layer

Returns:

1 if wave packet going up, -1 if going down

Decide whether wp is reflected or not

Isotropic scattering, wp must be reflected

Implements StructureObject.

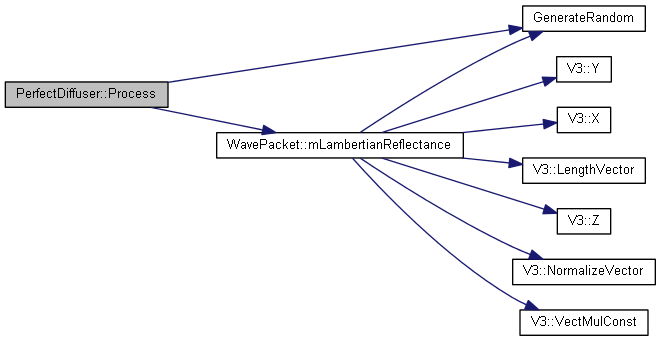

Here is the call graph for this function:

---

Member Data Documentation

reflectanceParameters* PerfectDiffuser::mReflectance [protected]

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/HomogeneousLayer.h
• OpenPaperOpt/HomogeneousLayer.cpp
