Basesheet2 Class Reference

#include <Basesheet.h>

Inheritance diagram for Basesheet2:

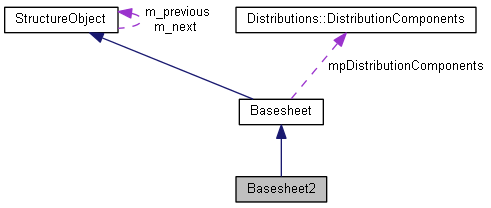

Collaboration diagram for Basesheet2:

List of all members.

Public Member Functions
	Basesheet2 (vector< ComponentGenerator * > *pCompGen, Distributions::DistributionComponents *pDistComps, float XMin, float XMax, float YMin, float YMax, StructureObject *pEl, Distributions::Distribution *pPoreSizeDist, Distributions::Distribution *pPoreEllipDist, double PoreContactReduction, ScatteringParameters *pScatLayer, bool EntryScattering=false)
int	Process (WavePacket &wp, int up_down, int internal) const
complex_LC	mGetRefrIndex (int nbr) const
Protected Attributes
vector< complex_LC >	mRefrIndex

---

Detailed Description

Constructor class Basesheet

Process class Basesheet

---

Constructor & Destructor Documentation

Basesheet2::Basesheet2	(	vector< ComponentGenerator * > *	pCompGen,
		Distributions::DistributionComponents *	pDistComps,
		float	XMin,
		float	XMax,
		float	YMin,
		float	YMax,
		StructureObject *	pEl,
		Distributions::Distribution *	pPoreSizeDist,
		Distributions::Distribution *	pPoreEllipDist,
		double	PoreContactReduction,
		ScatteringParameters *	pScatLayer,
		bool	EntryScattering = false
	)

Constructor. /**

Parameters:

pCompGen	Represents instance of ComponentGenerator vector
pDistComps	Represents component distribution in the thickness direction of the paper
rRefrIndex	Wavelength Refractive indec presenting complex values
RoughnessLow	Low room mean square roughness of the paper measured over small area
RoughnessHigh	High room mean square roughness of the paper measured over small area
XMin	X-coordinte to present minimum size of basesheet
XMax	X-coordinte to present maximum size of basesheet
YMin	Y-coordinte to present minimum size of basesheet
YMax	Y-coordinte to present maximum size of basesheet
pEl	Instance of StructureObject class is used to appraoch next layer untill last one

Here is the call graph for this function:

---

Member Function Documentation

complex_LC Basesheet2::mGetRefrIndex

(

int

nbr

)

const [virtual]

Returns effective refractive index of the statistical layer.

Parameters:

nbr	Index of simulated wavelength

Reimplemented from Basesheet.

Here is the call graph for this function:

int Basesheet2::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const [virtual]

Generate the component and send wavepacket into other component.

Parameters:

wp	Wave Packet's object to calculate ditance of interception and call many fuctions of wave packet.
up_down	Checks if wave packet is travelling in upward. .

Reimplemented from Basesheet.

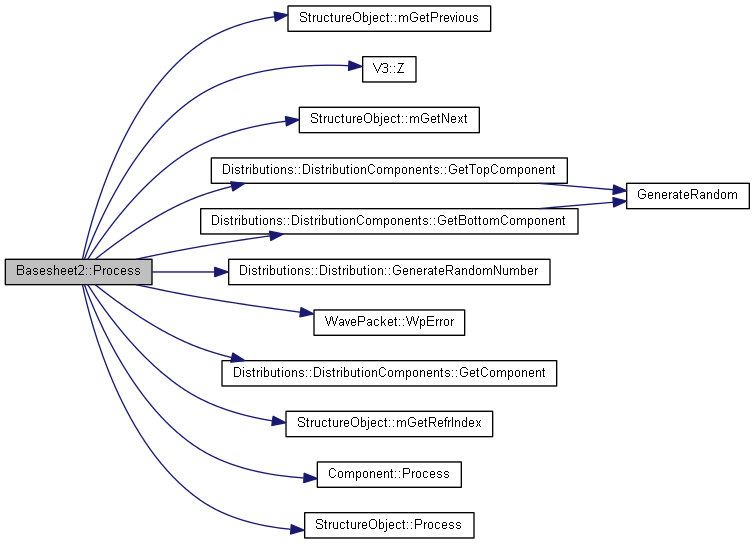

Here is the call graph for this function:

---

Member Data Documentation

vector<complex_LC> Basesheet2::mRefrIndex [protected]

Reimplemented from Basesheet.

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/Basesheet.h
• OpenPaperOpt/Basesheet.cpp
