SurfaceTN Class Reference

#include <SurfaceTN.h>

Inheritance diagram for SurfaceTN:

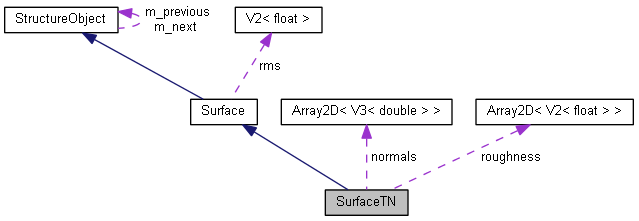

Collaboration diagram for SurfaceTN:

List of all members.

Public Member Functions
	SurfaceTN (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _normfact, bool _interpolate, float _rmsmin, float _rmsmax, StructureObject *_el)
	SurfaceTN (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _normfact, bool _interpolate, Array2D< V2< float > > &v, StructureObject *_el)
	SurfaceTN (float _zoffset, float _xmax, float _ymax, Array2D< V3< float > > &v1, bool _interpolate, Array2D< V2< float > > &v, StructureObject *_el)
	SurfaceTN (int _normfact, int _interpolate, Array2D< V2< float > > &v)
	SurfaceTN (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _normfact, int _interpolate, float _rmsmin, float _rmsmax, StructureObject *_el)
	SurfaceTN (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _normfact, int _interpolate, Array2D< V2< float > > &v, StructureObject *_el)
virtual	~SurfaceTN ()
virtual int	mIntercept (WavePacket &wp, double t1in, double t2in, int updown, double &t) const
virtual int	Process (WavePacket &wp, int updown, int internal) const
virtual double	mZposition (WavePacket &wp) const
Protected Member Functions
	SurfaceTN (int _mNorm, int _nnorm, int _mrough, int _nrough)
void	FindSnormal (WavePacket &wp, int updown) const
virtual bool	ReadNormals (std::string _normfile)
virtual void	CreateRandomNormals (int thetamax)
virtual void	CreateNormals (Array2D< float > &z, int mtopo, int ntopo, float dxtopo, float dytopo, int normfact)
virtual bool	ReadRoughness (std::string roughfile)
virtual void	WriteInfo (bool topobased, std::string _topofile, std::string _normfile, std::string _roughfile)
const V2< float >	FindRoughness (WavePacket &wp) const
Protected Attributes
int	mNorm
int	nnorm
double	dxnorm
double	dynorm
bool	interpolate
Array2D< V3< double > >	normals
bool	normal_mapping
int	mrough
int	nrough
double	dxrough
double	dyrough
Array2D< V2< float > >	roughness
bool	detailed_roughness

---

Constructor & Destructor Documentation

SurfaceTN::SurfaceTN	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_normfact,
		bool	_interpolate,
		float	_rmsmin,
		float	_rmsmax,
		StructureObject *	_el
	)

Constructor that creates normals from an actual topography file. No roughness mapping.

Parameters:

_zoffset
sizeX
sizeY
z	Instance Array2D vector to handle row and columns
_normfact
_interpolate
_rmsmin
_rmsmax
_el	Instance of StructureObject

Set various constants

Since we don't map different roughness values to the surface, we use the member 'rms' and ignore the matrix 'roughness'.

Set the size of the normal array. mXmax, mYMax, dxnorm and dynorm are set later during the normal estimations.

Estimate the normals from the topography.

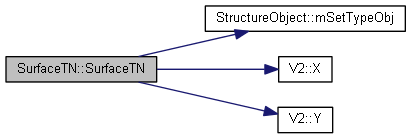

Here is the call graph for this function:

SurfaceTN::SurfaceTN	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_normfact,
		bool	_interpolate,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

Constructor that creates normals from an actual topography file. No roughness mapping.

Parameters:

_zoffset
sizeX
sizeY
z	Instance Array2D vector to handle row and columns
_normfact
_interpolate
v	Instance of Array2D class
_el	Instance of StructureObject

Set various constants

Set the size of the roughness array. dxrough and dyrough are set later below when the surface size is known.

Set the size of the normal array. dxnorm and dynorm are set later during the normal estimations.

Estimate the normals from the topography and read the roughness from file.

Here is the call graph for this function:

SurfaceTN::SurfaceTN	(	float	_zoffset,
		float	_xmax,
		float	_ymax,
		Array2D< V3< float > > &	v1,
		bool	_interpolate,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

Set various constants

Set the sizes of the normal and roughness arrays, etc.

Read the normal and roughness mappings from files.

Here is the call graph for this function:

SurfaceTN::SurfaceTN	(	int	_normfact,
		int	_interpolate,
		Array2D< V2< float > > &	v
	)

Constructor that creates normals from an actual topography file. Roughness mapping from file.

SurfaceTN::SurfaceTN	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_normfact,
		int	_interpolate,
		float	_rmsmin,
		float	_rmsmax,
		StructureObject *	_el
	)

SurfaceTN::SurfaceTN	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_normfact,
		int	_interpolate,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

virtual SurfaceTN::~SurfaceTN

(

)

[inline, virtual]

SurfaceTN::SurfaceTN	(	int	_mNorm,
		int	_nnorm,
		int	_mrough,
		int	_nrough
	)		[inline, protected]

Constructor to be used by subclasses only

---

Member Function Documentation

void SurfaceTN::CreateNormals	(	Array2D< float > &	z,
		int	mtopo,
		int	ntopo,
		float	dxtopo,
		float	dytopo,
		int	normfact
	)		[protected, virtual]

Approximate the derivatives using central difference quotients (and half of post- and predifference quotients around the edges).

Use hermite interpolation to calculate extra normals when normfact>1

Use the central difference qoutients immediately when normfact==1

Here is the caller graph for this function:

void SurfaceTN::CreateRandomNormals

(

int

thetamax

)

[protected, virtual]

Here is the call graph for this function:

const V2<float> SurfaceTN::FindRoughness

(

WavePacket &

wp

)

const [inline, protected]

Returns the roughness interval with respect to the lateral position of wp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SurfaceTN::FindSnormal	(	WavePacket &	wp,
		int	updown
	)		const [protected]

Don't interpolate the surface normal

Interpolate the surface normal

Turn the normal into the right direction

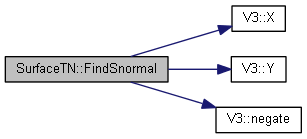

Here is the call graph for this function:

Here is the caller graph for this function:

int SurfaceTN::mIntercept	(	WavePacket &	wp,
		double	t1in,
		double	t2in,
		int	updown,
		double &	t
	)		const [virtual]

Save surface normal and position for next SURFSCAT if wp hit the surface

Parameters:

wp	Instance of wave packet class
t1in
t2in
ud
t

Reimplemented from Surface.

Reimplemented in SurfaceTNSubflat.

Here is the call graph for this function:

Here is the caller graph for this function:

virtual double SurfaceTN::mZposition

(

WavePacket &

wp

)

const [inline, virtual]

Parameters:

wp	Instance of wave packet class

Reimplemented from Surface.

Reimplemented in SurfaceTNSubflat.

Here is the caller graph for this function:

int SurfaceTN::Process	(	WavePacket &	wp,
		int	updown,
		int	internal
	)		const [virtual]

/*Determines the new direction after scattering and determine wp must intersect surface

Parameters:

wp	Instance of wave packet class
up_down

If not internal, compute the surface interception point, if any.

Move the wp to the surface and pick up the computed surface normal stored in Snormal

Find the refractive indices of the surrounding layers. Discard layers that are too thin.

Calculate the local coordinate system direction cosines for x and y. The local coordinate system is defined so that the wave packet lies in the local xz-plane (BSDF standard notation).

Transform the wave packet to the local coordinate system.

Rotate the polarization vector and select only the local s- and p- polarization.

Calculate reflection or transmission of the wave packet. If roughness mapping should be used, find the roughness.

Rotate the trajectory cosines for the reflected wave packet.

Rotate the polarization to the global coordinate system.

If reflected, we want to stay in the same layer

Return the number of HomogeneousLayers to pass if going up, or minus the number of HomogeneousLayers to pass if going down.

Reimplemented from Surface.

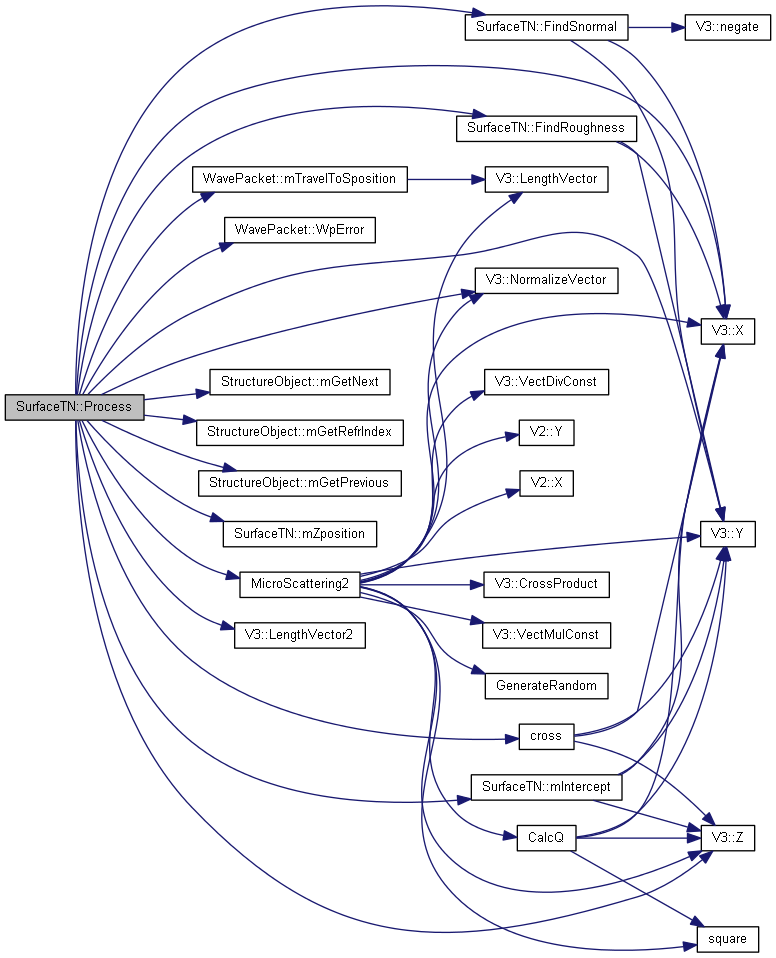

Here is the call graph for this function:

bool SurfaceTN::ReadNormals

(

std::string

_normfile

)

[protected, virtual]

Here is the caller graph for this function:

bool SurfaceTN::ReadRoughness

(

std::string

roughfile

)

[protected, virtual]

void SurfaceTN::WriteInfo	(	bool	topobased,
		std::string	_topofile,
		std::string	_normfile,
		std::string	_roughfile
	)		[protected, virtual]

Topography

Normals;

Roughness

Here is the call graph for this function:

---

Member Data Documentation

bool SurfaceTN::detailed_roughness [protected]

double SurfaceTN::dxnorm [protected]

double SurfaceTN::dxrough [protected]

double SurfaceTN::dynorm [protected]

double SurfaceTN::dyrough [protected]

bool SurfaceTN::interpolate [protected]

int SurfaceTN::mNorm [protected]

int SurfaceTN::mrough [protected]

int SurfaceTN::nnorm [protected]

bool SurfaceTN::normal_mapping [protected]

Array2D< V3<double> > SurfaceTN::normals [protected]

int SurfaceTN::nrough [protected]

Array2D< V2<float> > SurfaceTN::roughness [protected]

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/SurfaceTN.h
• OpenPaperOpt/SurfaceTN.cpp
