#include <SurfaceTopography.h>

Inheritance diagram for SurfaceTopography:

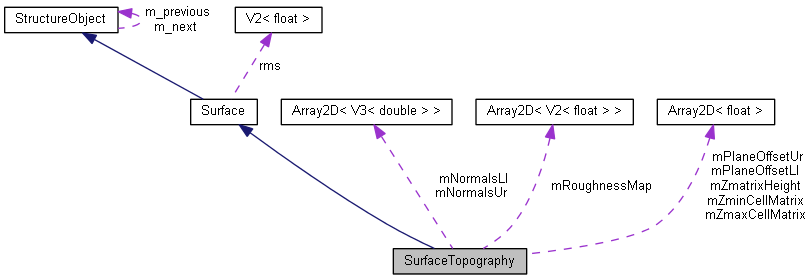

Collaboration diagram for SurfaceTopography:

[legend]

Public Member Functions
	SurfaceTopography ()
	SurfaceTopography (float _zoffset, Array2D< float > &z, float sizeX, float sizeY, Array2D< V2< float > > &v, StructureObject *_el)
	SurfaceTopography (float _zoffset, float _rms_lo, float _rms_hi, Array2D< float > &z, float sizeX, float sizeY, StructureObject *_el)
virtual	~SurfaceTopography ()
int	mIntercept (WavePacket &wp, double t1, double t2, int updown, double &t) const
int	Process (WavePacket &wp, int up_down, int internal) const
double	mZposition (WavePacket &wp) const
Protected Member Functions
bool	CellIntercept (WavePacket &wp, int x1, int y1, double &t, double t_c1, double t_c2) const
bool	UnicellIntercept (WavePacket &wp, double &t, double t1, double t2) const
V2< float >	GetRoughness (WavePacket &wp) const
Protected Attributes
vector< float >	mXvector
vector< float >	mYvector
Array2D< float > *	mZmatrixHeight
Array2D< V2< float > > *	mRoughnessMap
Array2D< float > *	mZminCellMatrix
Array2D< float > *	mZmaxCellMatrix
Array2D< V3< double > > *	mNormalsLl
Array2D< V3< double > > *	mNormalsUr
Array2D< float > *	mPlaneOffsetLl
Array2D< float > *	mPlaneOffsetUr
float	mDx
float	mDy
int	mNumberGridPointsX
int	mNumberGridPointsY
double	mDxRough
double	mDyRough
bool	mDetailedRoughness

Detailed Description

Surface object defined from heigth matrix with triangular interpolation between gridpoints. Two constructors are available. One uses constant V2 rouhghness values on the whole surface. One uses a roughness map that can be defined at another resolution than the matrix height. Upon surface scattering, the microrooughness is homogeneously distributed between min and max roughness value.

See also:: Surface SurfaceTopo

Constructor & Destructor Documentation

SurfaceTopography::SurfaceTopography ( ) [inline]

SurfaceTopography::SurfaceTopography	(	float	_zoffset,
		Array2D< float > &	z,
		float	sizeX,
		float	sizeY,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

Constructor that allows setting a roughness map where the microroughness of the surface is varying depending on the x-y position

Parameters:

_zoffset	Position of the mean height of the surface (<= 0 in mum)
z	Surface height matrix relative to its mean
sizeX	Size of the surface in x-direction (mum)
sizeY	Size of the surface in y-direction (mum)
v	Roughness matrix (min and max in mum)
_el	Pointer to the previous StructureObject in the structure

SurfaceTopography::SurfaceTopography	(	float	_zoffset,
		float	_rms_lo,
		float	_rms_hi,
		Array2D< float > &	z,
		float	sizeX,
		float	sizeY,
		StructureObject *	_el
	)

Constructor with constant microroughness on the whole surface

Parameters:

_zoffset	Position of the mean height of the surface (<= 0 in mum)
_rms_lo	Minimum surface microroughness
_rms_hi	Maximum surface microroughness
z	Surface height matrix relative to its mean
sizeX	Size of the surface in x-direction (mum)
sizeY	Size of the surface in y-direction (mum)
_el	Pointer to the previous StructureObject in the structure

SurfaceTopography::~SurfaceTopography ( ) [virtual]

Empty destructor. Surfaces are constant through the simulation.

Member Function Documentation

bool SurfaceTopography::CellIntercept	(	WavePacket &	wp,
		int	x1,
		int	y1,
		double &	t,
		double	t_c1,
		double	t_c2
	)		const `[protected]`

A function used by mIntercept. Returns true if the wp will intercept the surface of the cell betweeen two of the surface grid points.Returns true if the wp will intercept the surface of the cell. x1 and y1 should refer to the lower left grid point of the cell. t_c1 and t_c2 (where t_c1<=t_c2) should be the the parametric distance to the cell borders (or to points within the cell). The distance to the surface will be stored in t. The surface point will be stored in wp.mSposition, and the normal (always with positive z-comp.) will be stored in wp.mSnormal.

Parameters:

wp	The normal will be stored in wave packet surface normal.
x1	Lower grid point of the cell
y1	Lower grid point of the cell.
t	Allowed propagating distance until surface hit
t_c1	Parametric distance to the cell borders
t_c2	Parametric distance to the cell borders

Returns:: TRUE if interception, FALSE otherwise

Parametric distance to the surface defined by the lower left triangle

Parametric distance to the surface defined by the upper right triangle

Choose the closest hit triangle (if any).

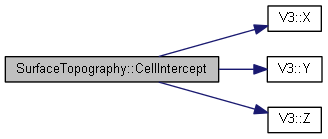

Here is the call graph for this function:

Here is the caller graph for this function:

V2< float > SurfaceTopography::GetRoughness ( WavePacket & wp ) const [protected]

Returns the roughness interval with respect to the lateral position of wp.

Here is the call graph for this function:

Here is the caller graph for this function:

int SurfaceTopography::mIntercept	(	WavePacket &	wp,
		double	t1,
		double	t2,
		int	updown,
		double &	t
	)		const `[virtual]`

Find intercept between the wave packet and the surface The intersection position and surface normal are stored in wp's members wp.mSposition and wp.mSnormal. 0<=t1<=t2 are the allowed travel distances until intercept. A surface hit before t1 or after t2 will not be detected.

Parameters:

wp	Wave Packet
t1	Minimum allowed wp travel to surface interception
t2	Maximum allowed wp travel to surface interception
ud	1 if wp going up, -1 if wp going up
t	Return the actual wp travel distance to the surface

Returns:: 0 if no interception found, 1 otherwise

Direction components that are zero are potentially dangerous in many places. Therefor we set them to a small value and ignore the effect of a normalization. Cases where the mZ-component are 1 are handled separately.

If possible, narrow down t1 and t2 to the intersection distances with the bounding volume. If the wp is to miss the box, we want to abort (return 0).

Find the first hit cell (and a few security checks).

Determine initial values to be used in the algorithm below.

Calculate t_v and t_h.

Examine cells in the order of the travelling direction. Reject cells early on if the wp won't pass toPass.

Reimplemented from Surface.

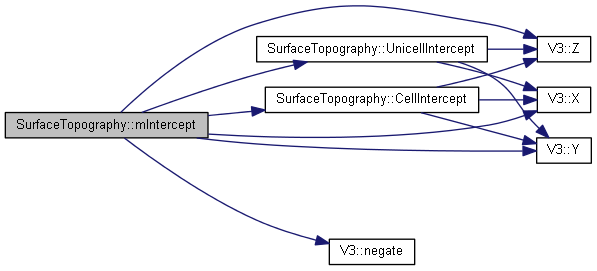

Here is the call graph for this function:

Here is the caller graph for this function:

double SurfaceTopography::mZposition ( WavePacket & wp ) const [virtual]

Calculates the z-coordinate of wp's projection onto the surface. Requires that wp is within the x- and y-boundaries.

Parameters:

wp	Wave Packet

Returns:: the z-coordinate (absolute) of wp's projection onto the surface.

Extract cell indices.

Check on the boundary and fix numerical problems

Lower left triangle?

Upper right triangle

Reimplemented from Surface.

Here is the call graph for this function:

Here is the caller graph for this function:

int SurfaceTopography::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const `[virtual]`

Process the wp onto the surface. Change wp's state depending on reflection or refraction. Internal means that wp is already at surface position, surface normal and position are set in wp.mSposition and wp.mSnormal. mInrecrept is called it wp had to travel to surface.

Parameters:

wp	Wave Packet
up_down	1 if wp going up, -1 if wp going up
internal	1 if internal, i.e. wp already hit the surface in e.g. StructureObject::PropInLayer. 0 if wp has to move to surface first.

Returns:: 0 if error or no surface hit n if the wp is going n layers up, and -n if the wp is going n layers down because if intermediate layers have 0 thickness the wp will go to the first non infinitesimal thickness layer at the surface intersection.

If not internal, compute the surface interception point, if any.

Move the wp to the surface and pick up the computed surface normal stored in Snormal

Find the refractive indices of the surrounding layers. Discard layers that are too thin.

Calculate the local coordinate system direction cosines for mXvector and mYvector. The local coordinate system is defined so that the wave packet lies in the local xz-plane (BSDF standard notation).

Transform the wave packets to the local coordinate system.

Rotate the polarization vector and select only the local s- and p- polarizations.

Determine the choice of reflection / transmission, etc.

Rotate the trajectory cosines for scattered wave packet.

Rotate the polarization to the global coordinate system.

If reflected, we want to stay in the same layer

Return the number of Homogeneous Layers to pass if going up, or minus the number of Homogeneous Layers to pass if going down.

Reimplemented from Surface.

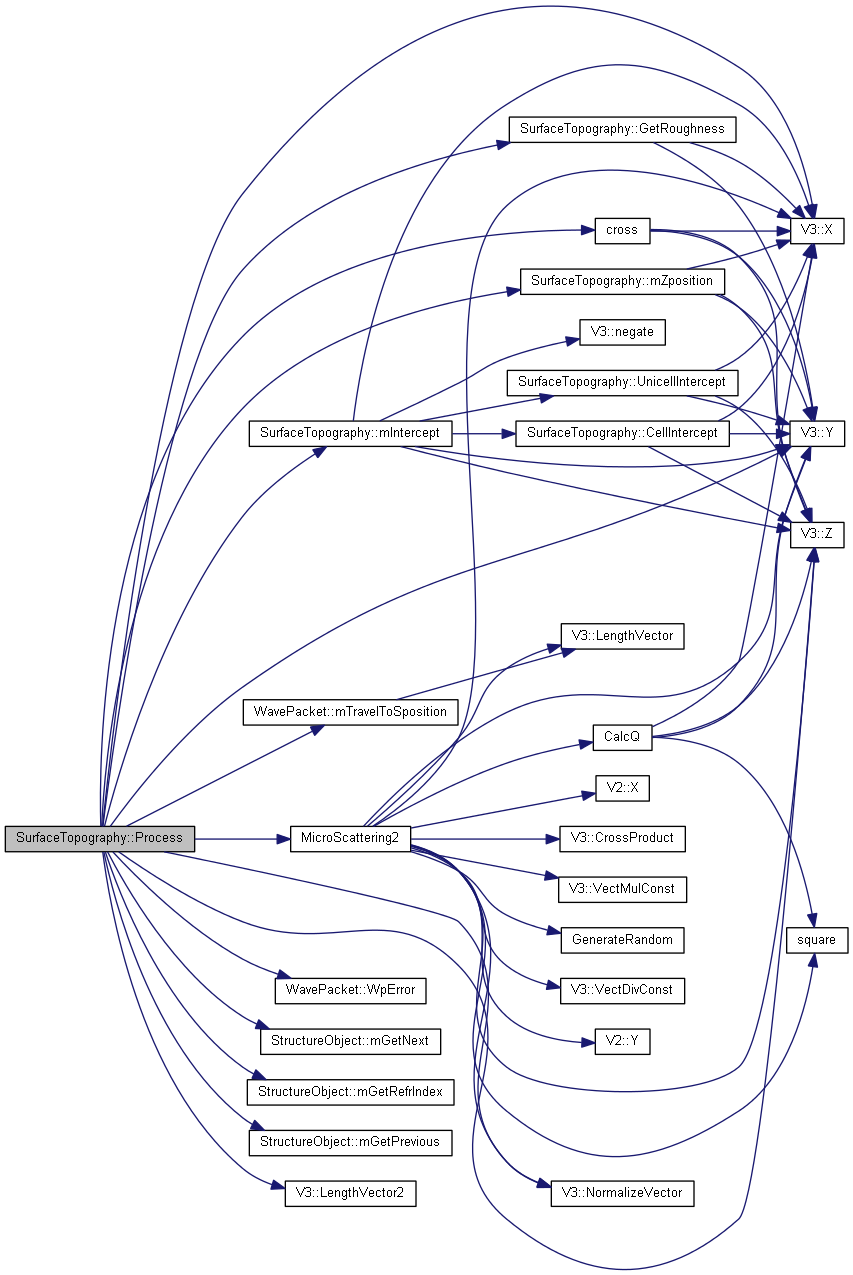

Here is the call graph for this function:

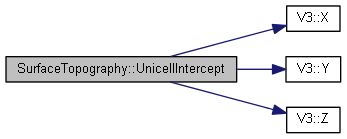

bool SurfaceTopography::UnicellIntercept	(	WavePacket &	wp,
		double &	t,
		double	t1,
		double	t2
	)		const `[protected]`

Works like mCellIntercept, but requires that wp.mDir=(0,0,+-1). Exists only because there might be cases where wp.mDir=(0,0,+-1) is preferrable to wp.mDir=(+-eps,+-eps,+-1)

Parameters:
