#include <SurfaceTNSubflat.h>

Inheritance diagram for SurfaceTNSubflat:

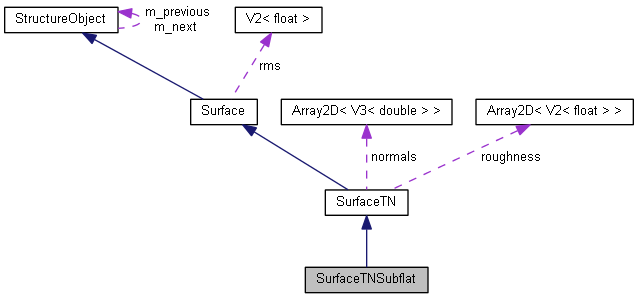

Collaboration diagram for SurfaceTNSubflat:

[legend]

Public Member Functions
	SurfaceTNSubflat (float _zoffset, float sizeX, float sizeY, Array2D< float >, int _normfact, bool _interpolate, float _rmsmin, float _rmsmax, StructureObject *_el)
	SurfaceTNSubflat (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _normfact, bool _interpolate, Array2D< V2< float > > &v, StructureObject *_el)
	SurfaceTNSubflat (float _zoffset, float sizeX, float sizeY, Array2D< float > &z, int _mNorm, int _nnorm, std::string _normfile, bool _interpolate, Array2D< V2< float > > &v, StructureObject *_el)
	SurfaceTNSubflat (float _zoffset, float sizeX, float sizeY, Array2D< float >, float _rmsmin, float _rmsmax, StructureObject *_el)
virtual	~SurfaceTNSubflat ()
int	mIntercept (WavePacket &wp, double t1in, double t2in, int updown, double &t) const
double	mZposition (WavePacket &wp) const

Constructor & Destructor Documentation

SurfaceTNSubflat::SurfaceTNSubflat	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float >	,
		int	_normfact,
		bool	_interpolate,
		float	_rmsmin,
		float	_rmsmax,
		StructureObject *	_el
	)

CONSTRUCTOR we have used a lot of constructors because of different parameters to read topography and roughness. Creates a flat surface at _zoffset. Calculates normals from the topography z,sizeX and sizeY should be its size, resulting in _normfact times as many precalculated normals (typically _normfact = 1 to 3).

Parameters:

_zoffset	Indicates actualy where is surface actualy exists
sizeX	Size of normal
sizeY	Size of normal
z	Replacement of topography file
_normfact	Represents how many normals can be calculated
_interpolate	Resolution of generated surface normal map.
_rmsmin	Root mean suare roughness of the paper over the small area
_rmsmax	Root mean suare roughness of the paper over the small area
_el	Instance of StructureObject class is used to appraoch next surface layer untill last one

Set various constants

Set the topography size. dxtopo and dytopo are set later when reading the topography.

Set the size of the normal array. mXmax, mYMax, dxnorm and dynorm are set later when reading the topography.

Since we don't map different roughness values to the surface, we use the member 'rms' and ignore the matrix 'roughness'.

Read the topography and estimate the normals from the topography.

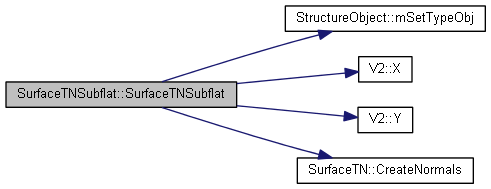

Here is the call graph for this function:

SurfaceTNSubflat::SurfaceTNSubflat	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_normfact,
		bool	_interpolate,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

Constructor that creates normals from an actual topography z. No roughness mapping.

Parameters:

_zoffset	Indicates actualy where is surface actualy exists
sizeX	Size of normal
sizeY	Size of normal
z	Instance Array2D vector to handle row and columns and to read topography
_normfact	Represents how many normal can be calculated
_interpolate	Resolution of generated surface normal map.
v	Replacement of roughness
_el	Instance of StructureObject class is used to appraoch next surface layer untill last one

Set various constants

Set the topography size. dxtopo and dytopo are set when reading the topography.

Set the size of the normal array. mXmax, mYMax, dxnorm and dynorm are set when reading the topography.

Set the size of the roughness array. dxrough and dyrough are set below when the surface size is known.

Read the topography and the roughness, and estimate the normals from the topography.

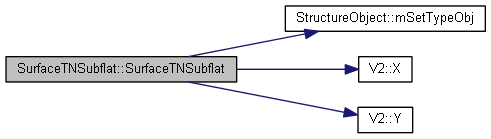

Here is the call graph for this function:

SurfaceTNSubflat::SurfaceTNSubflat	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float > &	z,
		int	_mNorm,
		int	_nnorm,
		std::string	_normfile,
		bool	_interpolate,
		Array2D< V2< float > > &	v,
		StructureObject *	_el
	)

Set various constants

Set the topography size. dxtopo and dytopo are set later when reading the topography.

Set the remaining array sizes, etc. dx and dy for the normals and the roughness is set below when the surface size is known.

Read the topography, the normals and the roughness from files.

Here is the call graph for this function:

SurfaceTNSubflat::SurfaceTNSubflat	(	float	_zoffset,
		float	sizeX,
		float	sizeY,
		Array2D< float >	ar,
		float	_rmsmin,
		float	_rmsmax,
		StructureObject *	_el
	)

Set various constants

Set the topography size. dxtopo and dytopo are set later when reading the topography.

We will not use normal mapping

Since we don't map different roughness values to the surface, we use the member 'rms' and ignore the matrix 'roughness'.

Read the topography and estimate the normals from the topography.

Here is the call graph for this function:

SurfaceTNSubflat::~SurfaceTNSubflat ( ) [virtual]

Constructor that reads the topography as well as the normal and roughness mappings from files.

Member Function Documentation

int SurfaceTNSubflat::mIntercept	(	WavePacket &	wp,
		double	t1in,
		double	t2in,
		int	updown,
		double &	t
	)		const `[virtual]`

Find intersection between surfaces and return value of travelled distance

Parameters:

wp	Wave Packet's object to calculate ditance of plane surface
t1in	Smaller distance of propagation
t2in	Smaller distance of propagation
ud
t	Determines the propagation distance

Update t1 and t2 so that they are within the volume spanned by the surface. If any of the components of wp.mDir is 0, we are impudent enough to change them to a small number.

Get the indices of the cell of t1. Note the need of 0.5 term imposed by the fact that cell is centered around the height point.

Very useful in many situations below

Abort if the wp is on the wrong side of the surface for t1. This is not the behaviour of SurfaceTopo / -topo_tri. If we end up exactly on a grid line, the result may not be correct.

Cell indices for t2. NOTE: one could use t2 to discover when the search should end instead of [x2,y2], but it is difficult to say if the algorithm would be faster / more simple...

Various variables needed in the algorithm

The main algorithm: test the cells along the path of the ray (wp).

Reimplemented from SurfaceTN.

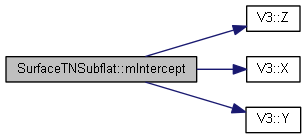

Here is the call graph for this function:

double SurfaceTNSubflat::mZposition ( WavePacket & wp ) const [virtual]

Find intersection between surfaces and return value of travelled distance

Parameters:

wp	Instance of wave packet class

Check on the boundary. There is really no good behavoiur if this case should be detected...

Reimplemented from SurfaceTN.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

OpenPaperOpt/SurfaceTNSubflat.h
OpenPaperOpt/SurfaceTNSubflat.cpp
