p3d::RndRay Class Reference

#include <RndRay.h>

List of all members.

Public Member Functions
	RndRay (RndVolume *vol, V3< double > pos, V3< double > dir, int threadNo=0)
	RndRay (const RndRay &rRay, V3< double > dir, int *discon)
V3< double >	Test (int level=0, int disp=0)
int	GetMaterial () const
int	GetIntersectType () const
V3< double >	GetPosition () const
double	GetTraceLen () const
const V3< double > &	GetDirection () const
const V3< double > &	GetHitNormal () const
const V3< double > &	GetHitPlaneNormal () const
int	GetLatZ () const
int	GetNumAccZ () const
void	SetNewDir (V3< double > &rNdir)
void	NormalizeDir ()
int	TraceToLattice ()
int	FindNextLatticeExit ()
int	MoveToNextLatticePoint ()
int	TestSingleBox (double dispX, double dispY, OrientClipBox *cb, double &rTHit)
int	IntersectRayClipboxes ()
int	IntersectPolysFromAir (OrientClipBox *box, double dispX, double dispY)
void	EstimateFromAirNormal ()
void	EnterLumenFromAir ()
int	TraceInsideLumen ()
void	LeaveLumenToAir ()
void	EstimateFromLumenNormal ()
void	EnterFiberFrom_x ()
int	LeaveFiberTo_x ()
int	TraceInsideFiber (double *limit=0)
void	EstimateFromFiberNormal ()
void	FindLatXYFromOrgin ()

---

Detailed Description

Position uppdate policy:

mOrgin,mOrginRx,mOrginRy are always uppdated when state is air together with lattice indices

mOrginRx,mOrginRy are not valid if outside lattice

mTrnOrg,mTrnOrgRx,mTrnOrgRy inherits mOrgin when entering fiber/lumen and becomes master. Echoes state to mOrgin on border hit

General trace rules: NOTE: Not yet finnished!!!!

Vars used outside fiber mOrgin, mDir, mTtoHit

Vars used inside fiber

Vars used inside lumen

---

Constructor & Destructor Documentation

RndRay::RndRay	(	RndVolume *	vol,
		V3< double >	pos,
		V3< double >	dir,
		int	threadNo = 0
	)

Here is the call graph for this function:

RndRay::RndRay	(	const RndRay &	rRay,
		V3< double >	dir,
		int *	discon
	)

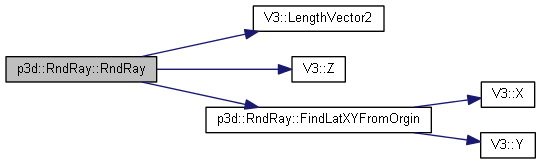

Here is the call graph for this function:

---

Member Function Documentation

void RndRay::EnterFiberFrom_x

(

)

Setup ray from passage ?->fiber through currently detected intersection Moves to hitpoint

Here is the caller graph for this function:

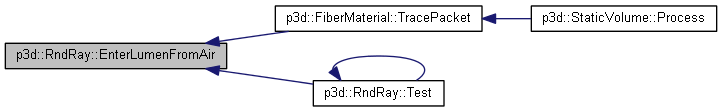

void RndRay::EnterLumenFromAir

(

)

Setup ray from passage air->lumen through end caping Call after trace has hit lumen area of end capping Moves to hitpoint

Here is the caller graph for this function:

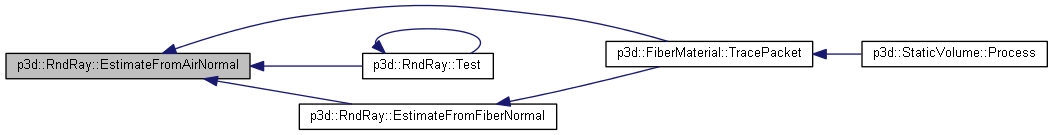

void RndRay::EstimateFromAirNormal

(

)

Can be called when IntersectRayClipboxes()->true. Uses mHit* Stores result in mHitNormal

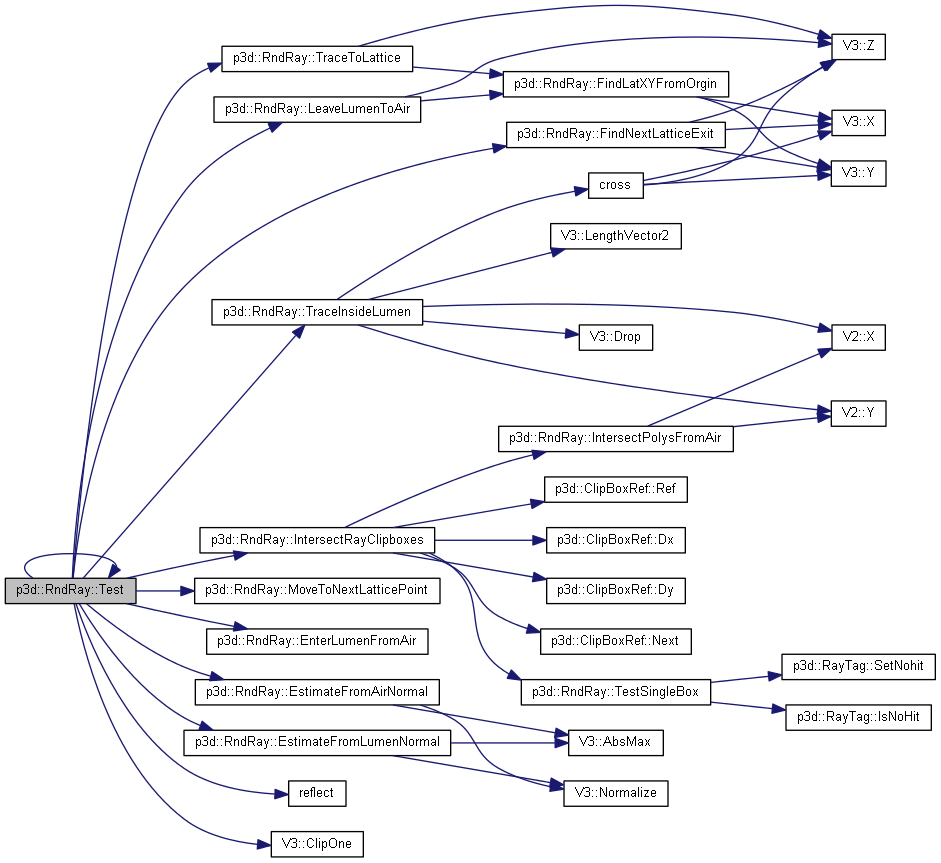

Here is the call graph for this function:

Here is the caller graph for this function:

void RndRay::EstimateFromFiberNormal

(

)

Estimates normal after fiber wall hit Stores result in mHitNormal

Here is the call graph for this function:

Here is the caller graph for this function:

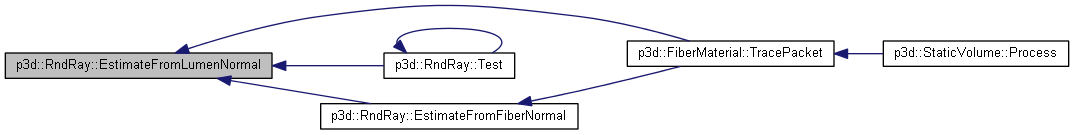

void RndRay::EstimateFromLumenNormal

(

)

Estimates normal after lumen hit. Can only be called if fiber wall and not end capping is hit!! Stores result in mHitNormal

Here is the call graph for this function:

Here is the caller graph for this function:

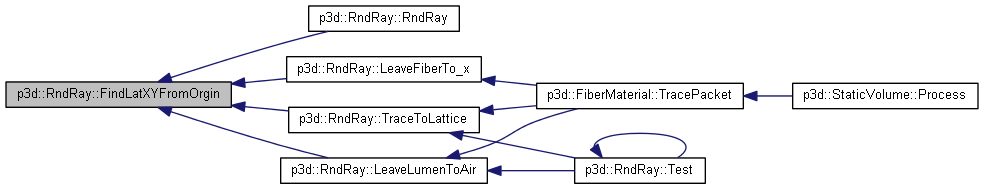

void RndRay::FindLatXYFromOrgin

(

)

Here is the call graph for this function:

Here is the caller graph for this function:

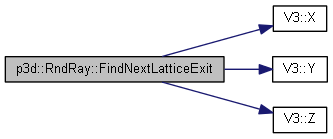

int RndRay::FindNextLatticeExit

(

)

Find t of next lattice change and setup change

Note:

May change current lattice point as well if ray "just missed" due to roundoff errors

Returns:

1 if current point is outside lattice

Here is the call graph for this function:

Here is the caller graph for this function:

const V3<double>& p3d::RndRay::GetDirection

(

)

const [inline]

Here is the caller graph for this function:

const V3<double>& p3d::RndRay::GetHitNormal

(

)

const [inline]

Here is the caller graph for this function:

const V3<double>& p3d::RndRay::GetHitPlaneNormal

(

)

const [inline]

Here is the caller graph for this function:

int p3d::RndRay::GetIntersectType

(

)

const [inline]

Here is the caller graph for this function:

int p3d::RndRay::GetLatZ

(

)

const [inline]

Here is the caller graph for this function:

int p3d::RndRay::GetMaterial

(

)

const [inline]

Here is the caller graph for this function:

int p3d::RndRay::GetNumAccZ

(

)

const [inline]

Here is the caller graph for this function:

V3<double> p3d::RndRay::GetPosition

(

)

const [inline]

Here is the caller graph for this function:

double p3d::RndRay::GetTraceLen

(

)

const [inline]

Here is the caller graph for this function:

int RndRay::IntersectPolysFromAir	(	OrientClipBox *	box,
		double	dispX,
		double	dispY
	)

Returns:

true on hit. Called from IntersectRayClipboxes. Init mPolyIntersectLimit prior to call Uppdates mHit*

Here is the call graph for this function:

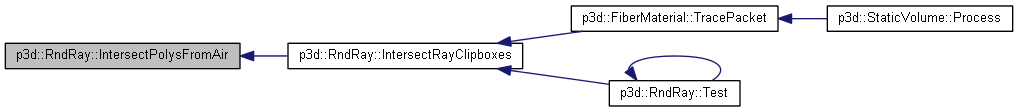

Here is the caller graph for this function:

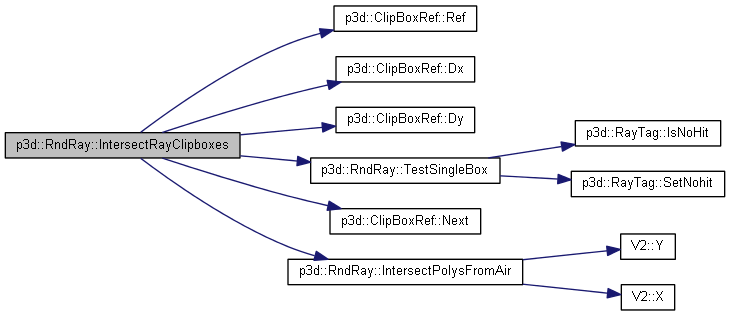

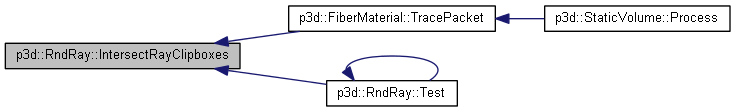

int RndRay::IntersectRayClipboxes

(

)

Returns:

true on hit or falce if no hit in this lattice box note Does _NOT_ check that latice extents are calculated will crash out major if not...

Here is the call graph for this function:

Here is the caller graph for this function:

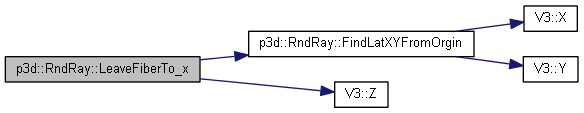

int RndRay::LeaveFiberTo_x

(

)

Setup ray from passage fiber->? through currently detected intersection Moves to hitpoint

Note:

Allocates new ray-number if passage -> air

Returns:

true on error. May hapen if misses intersection passes out through end caping outside lattice

Here is the call graph for this function:

Here is the caller graph for this function:

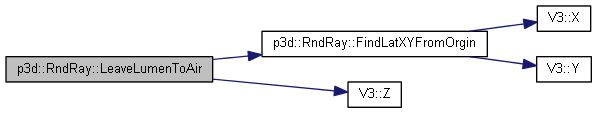

void RndRay::LeaveLumenToAir

(

)

Setup ray from passage lumen->air through currently detected intersection Moves to hitpoint

Note:

Allocates new ray-number

Here is the call graph for this function:

Here is the caller graph for this function:

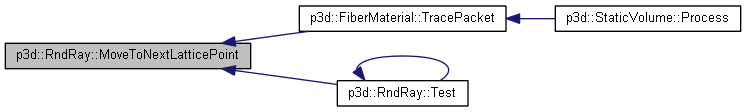

int RndRay::MoveToNextLatticePoint

(

)

Forwards ray to next precalculated lattice point note Does _NOT_ check that point is calculated!! This point may lie outside ray, calc next to find out...

Returns:

1 if new point is outside lattice

Here is the caller graph for this function:

void p3d::RndRay::NormalizeDir

(

)

[inline]

Here is the call graph for this function:

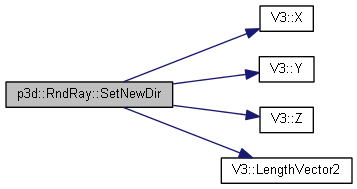

void RndRay::SetNewDir

(

V3< double > &

rNdir

)

Sets new direction. Warning, latice boundaries must be recalculated.

Note:

Also resets the accumulated traveled distance to 0 and any eventual nontaken hit

Here is the call graph for this function:

Here is the caller graph for this function:

V3< double > RndRay::Test	(	int	level = 0,
		int	disp = 0
	)

Here is the call graph for this function:

Here is the caller graph for this function:

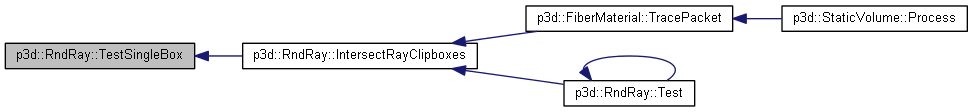

int RndRay::TestSingleBox	(	double	dispX,
		double	dispY,
		OrientClipBox *	cb,
		double &	rTHit
	)		[inline]

True on hit, then tHit is set to hit value Uses hit-cache. Called by IntersectRayClipboxes.

Here is the call graph for this function:

Here is the caller graph for this function:

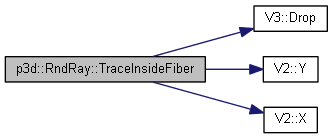

int RndRay::TraceInsideFiber

(

double *

limit = 0

)

Trace ray inside fiber for next hit. Returns true on a hit. If false, call again. -1=error, 1=Hit wall, 2=Trace-limit expired Moves to hitpoint

Here is the call graph for this function:

Here is the caller graph for this function:

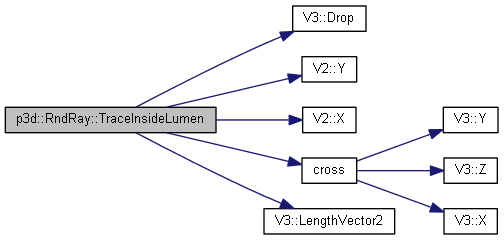

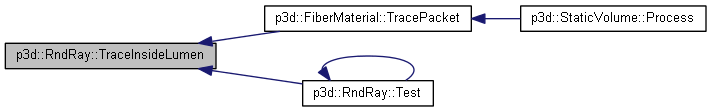

int RndRay::TraceInsideLumen

(

)

Trace ray inside lumen for next hit. Returns true on a hit. If false, call again. -1=error Moves to hitpoint

Note:

approximation (makes little error) stated in code!

Here is the call graph for this function:

Here is the caller graph for this function:

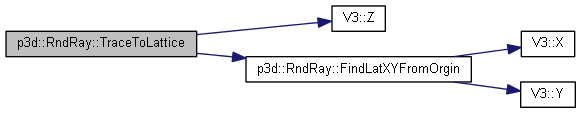

int RndRay::TraceToLattice

(

)

Trace from outside -> first lattice box, by calcing t.

Returns:

0-Ok, 1-Missed. Note: Unsafe...

Here is the call graph for this function:

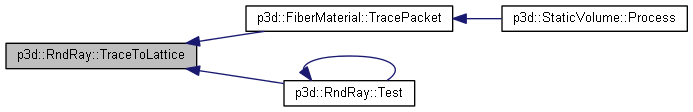

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/RndRay.h
• OpenPaperOpt/RndRay.cpp
