SurfaceTopographyBilinear Class Reference

#include <SurfaceTopoBilinear.h>

Inheritance diagram for SurfaceTopographyBilinear:

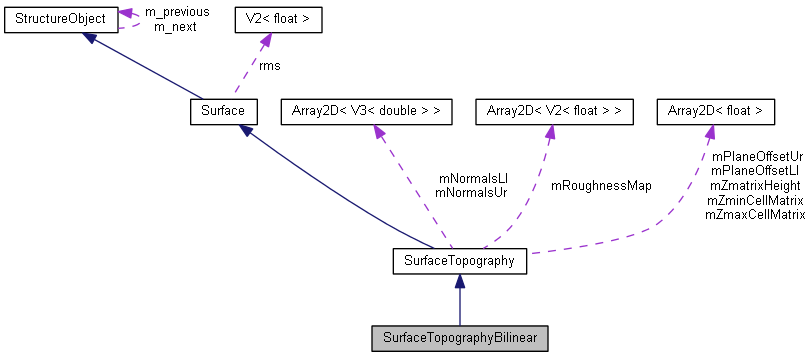

Collaboration diagram for SurfaceTopographyBilinear:

List of all members.

Public Member Functions
	SurfaceTopographyBilinear ()
virtual	~SurfaceTopographyBilinear ()
	SurfaceTopographyBilinear (float zOff, float rms_lo, float rms_hi, Array2D< float > *z, float sizeX, float sizeY, StructureObject *el)

---

Detailed Description

Surface object defined from heigth matrix with bilinear interpolation between gridpoints. Two constructors are available. One uses constant V2 rouhghness values on the whole surface. One uses a roughness map that can be defined at another resolution than the matrix height. Upon surface scattering, the microrooughness is homogeneously distributed between min and max roughness value.

See also:

Surface SurfaceTopo

---

Constructor & Destructor Documentation

SurfaceTopographyBilinear::SurfaceTopographyBilinear

(

)

[inline]

virtual SurfaceTopographyBilinear::~SurfaceTopographyBilinear

(

)

[inline, virtual]

SurfaceTopographyBilinear::SurfaceTopographyBilinear	(	float	zOff,
		float	rms_lo,
		float	rms_hi,
		Array2D< float > *	z,
		float	sizeX,
		float	sizeY,
		StructureObject *	el
	)

Constructor that creates normals from the topography z. No roughness mapping. /**

Parameters:

zOff	Indicates actualy where is surface actualy exists
z	Replacement of topography z
rms_lo	Root mean suare roughness of the paper over the small area
rms_hi	Root mean suare roughness of the paper over small area
sizeX	Size of normal
sizeY	Size of normal
_el	Instance of StructureObject class is used to appraoch next surface layer untill last one

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/SurfaceTopoBilinear.h
• OpenPaperOpt/SurfaceTopoBilinear.cpp
