DetectorImage Class Reference

#include <DetectorImage.h>

Inheritance diagram for DetectorImage:

Collaboration diagram for DetectorImage:

List of all members.

Public Member Functions
	DetectorImage ()
virtual	~DetectorImage ()
	DetectorImage (int reftra, int apt_type, float num_apt, float distance, float theta_s, float phi_s, int x_nbr, int y_nbr, float x_min, float x_max, float y_min, float y_max, std::string filename, int nbr_lambda, Detector *el)
virtual int	Process (WavePacket &wp, int up_down, int internal) const
virtual int	WriteResults (int power_inc) const
int	WriteResults2 (std::vector< double > power_inc, IO::Output &rOutput) const

---

Detailed Description

Image detector.

---

Constructor & Destructor Documentation

DetectorImage::DetectorImage

(

)

Constructor.

DetectorImage::~DetectorImage

(

)

[virtual]

Destructor.

DetectorImage::DetectorImage	(	int	reftra,
		int	apt_type,
		float	num_apt,
		float	distance,
		float	theta_s,
		float	phi_s,
		int	x_nbr,
		int	y_nbr,
		float	x_min,
		float	x_max,
		float	y_min,
		float	y_max,
		std::string	filename,
		int	nbr_lambda,
		Detector *	el
	)

Constructor.

Parameters:

reftra	1 reflectance 0 transmittance.
apt_type
num_apt
distance	distance to paper surface.
theta_s
phi_s
x_nbr
y_nbr
x_min
x_max
y_min
y_max
nbr_lambda	number of wavelengths simulated.
el	pointer to previous detector.

---

Member Function Documentation

int DetectorImage::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const [virtual]

Detected image in matrix form.

Parameters:

wp	Instance of wavepacket.
up_down

Reimplemented from Detector.

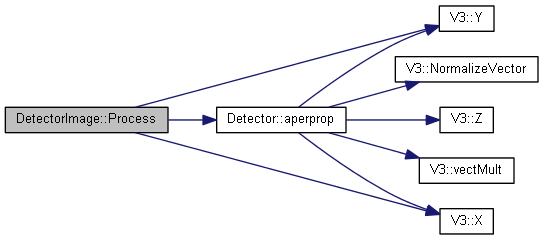

Here is the call graph for this function:

int DetectorImage::WriteResults

(

int

power_inc

)

const [virtual]

Old output method. Will be removed.

Deprecated:

Reimplemented from Detector.

int DetectorImage::WriteResults2	(	std::vector< double >	power_inc,
		IO::Output &	rOutput
	)		const [virtual]

Writes results as XML to the results file in rOutput.

Parameters:

rOutput	reference to an Output object.
power_inc	number of wavepackets that don't have error state.

Reimplemented from Detector.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/DetectorImage.h
• OpenPaperOpt/DetectorImage.cpp
