DetectorArs Class Reference

#include <DetectorArs.h>

Inheritance diagram for DetectorArs:

Collaboration diagram for DetectorArs:

List of all members.

Public Member Functions
	DetectorArs ()
virtual	~DetectorArs ()
	DetectorArs (int reftra, int apt_type, float apt_diameter, float distance, float theta_max, float theta_min, float theta_step, int theta_nbr, float phi_max, float phi_min, float phi_step, int phi_nbr, int nbr_lambda, Detector *el)
virtual int	Process (WavePacket &wp, int up_down, int internal) const
virtual int	WriteResults2 (std::vector< double > power_inc, IO::Output &rOutput) const

---

Detailed Description

This detector is very slow because it goes through all positions to check wether the wave packet goes through the aperture at the specific position. Use DetectorArsGlobe, which only takes the direction of the wave packet into account, for faster (approximated) calculations.

See also:

DetectorArsGlobe

---

Constructor & Destructor Documentation

DetectorArs::DetectorArs

(

)

Constructor.

DetectorArs::~DetectorArs

(

)

[virtual]

Destructor.

DetectorArs::DetectorArs	(	int	reftra,
		int	apt_type,
		float	apt_diameter,
		float	distance,
		float	theta_max,
		float	theta_min,
		float	theta_step,
		int	theta_nbr,
		float	phi_max,
		float	phi_min,
		float	phi_step,
		int	phi_nbr,
		int	nbr_lambda,
		Detector *	el
	)

Constructor.

Parameters:

reftra	1 reflectance or 0 transmittance.
apt_type
apt_diameter
distance	distance to the paper surface.
theta_max
theta_min
theta_step
theta_nbr
phi_max
phi_min
phi_step
phi_nbr
el	pointer to the previous detector.

---

Member Function Documentation

int DetectorArs::Process	(	WavePacket &	wp,
		int	up_down,
		int	internal
	)		const [virtual]

Process the wave packet and mesured power is tranformed into BSDF.

Parameters:

wp	Instance of wavepacket.
up_down	.

Reimplemented from Detector.

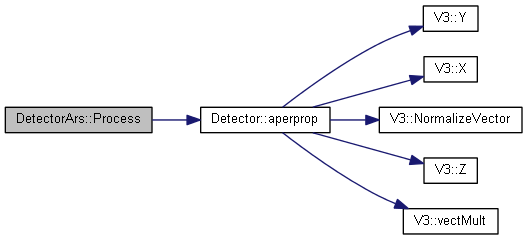

Here is the call graph for this function:

int DetectorArs::WriteResults2	(	std::vector< double >	power_inc,
		IO::Output &	rOutput
	)		const [virtual]

Writes results as XML to the results file in rOutput.

Parameters:

rOutput	reference to an Output object.
power_inc	number of wavepackets that don't have error state.

Reimplemented from Detector.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• OpenPaperOpt/DetectorArs.h
• OpenPaperOpt/DetectorArs.cpp
